Module quang 1G
Giá sản phẩm:
180,000 Ä‘ ()
Mã sản phẩm:
SFP
Hãng sản xuất:
SFPEX
Bảo hà nh:
2 năm
Mô tả ngắn
Module quang 1G
Chi tiết sản phẩm
Module quang 1G | Module quang 1Gb | Module quang 1Gbps | Module quang SFP công nghi?p 1 s?i 2 s?i transceiver LC ch?t l??ng
B?ng giá module quang 2 s?i Cablexa SFP Dual-fiber Transceivers
| Part Number | Data Rate (Mbps) |
Wavelength (nm) |
Distance | Price(USD) |

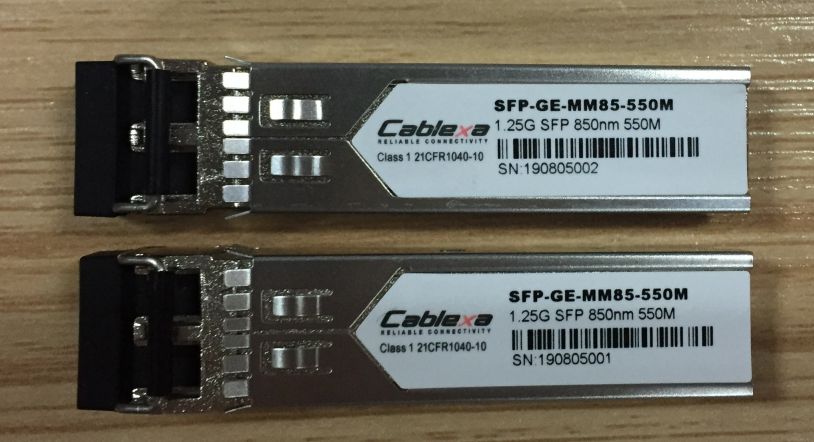

| SFP-GE-MM85-550M | 1250 | 850 | 550m | 7$ |
| SFP-T-GE | 1250 | RJ45 | 100m | 28$ |
| SFP-GE-SM13-10KM | 1250 | 1310 | 10km | 8$ |
| SFP-GE-SM13-20KM | 1250 | 1310 | 20km | 8$ |
| SFP-GE-SM13-40KM | 1250 | 1310 | 40km | 16$ |
| SFP-GE-SM15-40KM | 1250 | 1550 | 40km | 18$ |
| SFP-GE-SM15-70KM | 1250 | 1550 | 70km | 26$ |
| SFP-GE-SM15-80KM | 1250 | 1550 | 80km | 26$ |
| SFP-GE-SM15-100KM | 1250 | 1550 | 100km | 61$ |
| SFP-GE-SM15-120KM | 1250 | 1550 | 120km |
B?ng giá module quang 1 s?i Cablexa SFP BIDI Transceivers
| SFP-GE-3155-3KM | 1250 | TX1310/RX1550 | 3km | |
| SFP-GE-5531-3KM | 1250 | TX1550/RX1310 | 3km | |
| SFP-GE-3155-10KM | 1250 | TX1310/RX1550 | 10km | 10$ |
| SFP-GE-5531-10KM | 1250 | TX1550/RX1310 | 10km | 10$ |
| SFP-GE-3155-20KM | 1250 | TX1310/RX1550 | 20km | 14$ |
| SFP-GE-5531-20KM | 1250 | TX1550/RX1310 | 20km | 14$ |
| SFP-GE-3155-40KM | 1250 | TX1310/RX1550 | 40km | 23$ |
| SFP-GE-5531-40KM | 1250 | TX1550/RX1310 | 40km | 23$ |
| SFP-GE-3155-60KM | 1250 | TX1310/RX1550 | 60km | |
| SFP-GE-5531-60KM | 1250 | TX1550/RX1310 | 60km | |
| SFP-GE-4955-80KM | 1250 | TX1490/RX1550 | 80km | 52$ |
| SFP-GE-5549-80KM | 1250 | TX1550/RX1490 | 80km | 52$ |
| SFP-GE-4955-100KM | 1250 | TX1490/RX1550 | 100km | 75$ |
| SFP-GE-5549-100KM | 1250 | TX1550/RX1490 | 100km | 75$ |
| SFP-GE-4955-120KM | 1250 | TX1490/RX1550 | 120km | 81$ |
| SFP-GE-5549-120KM | 1250 | TX1550/RX1490 | 120km | 81$ |
B?ng giá price list modul quang 1G t? hãng SFPEX và CABLEXA?
| Price (USD) | Mã | Mô t? | Data Rate (Mbps) |
Wavelength (nm) |
Distance |
| 9$ | SFP-FE-MM13-2KM | Cablexa SFP, 100~155Mb/s, 100BASE-FX, OC3-MM, MMF, 1310nm, Duplex LC, 2KM Transceiver Module | 100~155Mb/s | 1310 | 2km |
| 14$ | SFP-FE-SM13-20KM | Cablexa SFP, 100~155Mb/s, 100BASE-LX, OC3-IR1, SMF, 1310nm, Duplex LC, 20KM Transceiver Module | 100~155Mb/s | 1310 | 20km |
| 17$ | SFP-FE-SM13-40KM | Cablexa SFP, 100~155Mb/s, 100BASE-EX, OC3-LR1, SMF, 1310nm, Duplex LC, 40KM Transceiver Module | 100~155Mb/s | 1310 | 40km |
| 32$ | SFP-FE-SM15-80KM | Cablexa SFP, 100~155Mb/s, 100BASE-ZX, OC3-LR2, SMF, 1550nm, Duplex LC, 80KM Transceiver Module | 100~155Mb/s | 1550 | 80km |
| 45$ | SFP-FE-SM15-120KM | Cablexa SFP, 100~155Mb/s, 100BASE-EZX, SMF, 1550nm, Duplex LC, 120KM Transceiver Module | 100~155Mb/s | 1550 | 120km |
| 60$ | SFP-FE-SM15-150KM | Cablexa SFP, 100~155Mb/s, 100BASE-EZX, SMF, 1550nm, Duplex LC, 150KM Transceiver Module | 100~155Mb/s | 1550 | 150km |
| 9$ | SFP-GE-MM85-550M | Cablexa SFP, 1.25Gb/s, 1000BASE-SX, MMF, 850nm, Duplex LC, 550M Transceiver Module | 1.25Gb/s | 850 | 550m |
| 8$ | SFP-GE-MM13-2KM | Cablexa SFP, 1.25Gb/s, 1000BASE-SX+, MMF, 1310nm, Duplex LC, 2KM Transceiver Module | 1.25Gb/s | 1310 | 2km |
| 8$ | SFP-GE-SM13-10KM | Cablexa SFP, 1.25Gb/s, 1000BASE-LX, SMF, 1310nm, Duplex LC, 10KM Transceiver Module | 1.25Gb/s | 1310 | 10km |
| 16$ | SFP-GE-SM13-40KM | Cablexa SFP, 1.25Gb/s, 1000BASE-EX, SMF, 1310nm, Duplex LC, 40KM Transceiver Module | 1.25Gb/s | 1310 | 40km |
| 18$ | SFP-GE-SM15-40KM | Cablexa SFP, 1.25Gb/s, 1000BASE-XD, SMF, 1550nm, Duplex LC, 40KM Transceiver Module | 1.25Gb/s | 1550 | 40km |
| 27$ | SFP-GE-SM15-80KM | Cablexa SFP, 1.25Gb/s, 1000BASE-ZX, SMF, 1550nm, Duplex LC, 80KM Transceiver Module | 1.25Gb/s | 1550 | 80km |
| 71$ | SFP-GE-SM15-120KM | Cablexa SFP, 1.25Gb/s, 1000BASE-EZX, SMF, 1550nm, Duplex LC, 120KM Transceiver Module | 1.25Gb/s | 1550 | 120km |
| Price (USD) | Mã | Mô t? | Data Rate (Gbps) |
Wavelength (nm) |
Distance |
| 10$ | SFP-GE-3155-2KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1310nm, RX-1550nm, SMF, Simplex LC, 2KM Transceiver Module | 1.25Gb/s | TX1310/RX1550 | 2km |
| 10$ | SFP-GE-5531-2KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1550nm, RX-1310nm, SMF, Simplex LC, 2KM Transceiver Module | 1.25Gb/s | TX1550/RX1310 | 2km |
| 14$ | SFP-GE-3149-20KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1310nm, RX-1490nm, SMF, Simplex LC, 20KM Transceiver Module | 1.25Gb/s | TX1310/RX1490 | 20km |
| 14$ | SFP-GE-4931-20KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1490nm, RX-1310nm, SMF, Simplex LC, 20KM Transceiver Module | 1.25Gb/s | TX1310/RX1550 | 20km |
| 14$ | SFP-GE-3155-20KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1310nm, RX-1550nm, SMF, Simplex LC, 20KM Transceiver Module | 1.25Gb/s | TX1490/RX1310 | 20km |
| 14$ | SFP-GE-5531-20KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1550nm, RX-1310nm, SMF, Simplex LC, 20KM Transceiver Module | 1.25Gb/s | TX1550/RX1310 | 20km |
| 23$ | SFP-GE-3149-40KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1310nm, RX-1490nm, SMF, Simplex LC, 40KM Transceiver Module | 1.25Gb/s | TX1310/RX1490 | 40km |
| 23$ | SFP-GE-4931-40KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1490nm, RX-1310nm, SMF, Simplex LC, 40KM Transceiver Module | 1.25Gb/s | TX1490/RX1310 | 40km |
| 23$ | SFP-GE-3155-40KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1310nm, RX-1550nm, SMF, Simplex LC, 40KM Transceiver Module | 1.25Gb/s | TX1310/RX1550 | 40km |
| 23$ | SFP-GE-5531-40KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1550nm, RX-1310nm, SMF, Simplex LC, 40KM Transceiver Module | 1.25Gb/s | TX1550/RX1310 | 40km |
| 52$ | SFP-GE-4955-80KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1490nm, RX-1550nm, SMF, Simplex LC, 80KM Transceiver Module | 1.25Gb/s | TX1490/RX1550 | 80km |
| 52$ | SFP-GE-5549-80KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1550nm, RX-1490nm, SMF, Simplex LC, 80KM Transceiver Module | 1.25Gb/s | TX1550/RX1490 | 80km |
| 81$ | SFP-GE-4955-120KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1490nm, RX-1550nm, SMF, Simplex LC, 120KM Transceiver Module | 1.25Gb/s | TX1490/RX1550 | 120km |
| 81$ | SFP-GE-5549-120KM | Cablexa SFP BIDI, 1.25Gb/s, TX-1550nm, RX-1490nm, SMF, Simplex LC, 120KM Transceiver Module | 1.25Gb/s | TX1550/RX1490 | 120km |
| Mã | Mô t? | Giá (VND) |
| Module quang 1G Transceiver 1 s?i và 2 s?i | ||
| Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m Transceiver | ||
| Cisco GLC-LH-SM Compatible 1000BASE-LX SMF 1310nm 10km SFP Transceiver | ||
| Cisco GLC-EX-SM Compatible 1000BASE-EX SFP 1310nm 40km Transceiver | ||
| Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP 850nm 550m Transceiver | ||
| Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SMF 1310nm 10km SFP Transceiver | ||
| Cisco GLC-EX-SMD Compatible 1000BASE-EX SFP 1310nm 40km Transceiver | ||
| Cisco GLC-ZX-SMD Compatible 1000BASE-ZX SFP 1550nm 70km Transceiver | ||
| Cisco GLC-EZX-SMD Compatible 1000BASE-EZX SFP 1550nm 120km Transceiver | ||
| Cisco GLC-T Compatible 1000BASE-T Copper 100m RJ45 SFP Module | ||
| Cisco GLC-TE Compatible 1000BASE-T Copper 100m RJ45 SFP Module | ||
| Cisco GLC-BX-U Compatible 1000BASE-BX10-U SMF TX:1310nm/RX:1490nm 10km SFP Transceiver | ||
| Cisco GLC-BX-D Compatible 1000BASE-BX10-D SMF TX:1490nm/RX:1310nm 10km SFP Transceiver | ||
| Module quang SFP công nghi?p | ||
| Cisco GLC-SX-MM-RGD Compatible 1000BASE-SX Industrial SFP 850nm 550m Transceiver | ||
| Cisco GLC-LX-SM-RGD Compatible 1000BASE-LX SMF 1310nm 10km Industrial SFP Transceiver | ||
| Cisco GLC-ZX-SM-RGD Compatible 1000BASE-ZX SFP 1550nm 70km Industrial Transceiver | ||
| Cisco GLC-BX40-D-I Compatible 1000BASE-BX40-D TX:1550nm/RX:1310nm 40km Industrial SFP Transceive | ||
| Cisco GLC-BX40-U-I Compatible 1000BASE-BX40-U SMF TX:1310nm/RX:1550nm 40km Industrial SFP Transceiver | ||
Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DDM)
Cisco GLC-SX-MMD is a high performance and cost effective small form factor pluggable (SFP) transceiver for 1000BASE-SX Gigabit Ethernet and 1G Fiber Channel application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.
The 1000BASE-SX module quang 1G SFP transceiver is tested to be compatible with Cisco networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters. The SFP transceiver is an ideal equivalent to Cisco GLC-SX-MMD 1000BASE-SX 850nm MMF 550m DDM SFP Transceiver but with much lower price, which provides a reliable compatible SFP transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.
The SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the VCSEL laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
The 1000BASE-SX module quang 1G SFP transceiver is tested to be compatible with Cisco networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters. The SFP transceiver is an ideal equivalent to Cisco GLC-SX-MMD 1000BASE-SX 850nm MMF 550m DDM SFP Transceiver but with much lower price, which provides a reliable compatible SFP transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.
The SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the VCSEL laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Tính n?ng Cisco GLC-SX-MMD
• Support Up to 1.25Gb/s data links
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Support Digital diagnostics, compliant with SFF-8472
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Support Digital diagnostics, compliant with SFF-8472
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
| OEM Cisco Part Number | GLC-SX-MMD | OEM Part Number | |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 550 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > 0 dBm |
| Connector | Duplex LC | DDM | Yes |
| Environment | Operating: 0°C to 70°C | Weight | 0.025 kg |
| Storage: -40°C to 85°C | |||
| Application | 1x Fiber Channel, Switch to Switch Interface | Compliance | IEC/EN 61000-4-2,IEC-60825 |
| Gigabit Ethernet, Switched Backplane Applications | FDA 21CFR 1040.10 and 1040.11 | ||
| Router/Server Interface, Other Optical Links | RoHS |
Products cùng phân khúc Cisco GLC-SX-MMD
GLC-T SFP-GE-T GLC-SX-MM SFP-GE-S GLC-LH-SM GLC-LH-SMD SFP-GE-L GLC-EX-SMD GLC-ZX-SM GLC-ZX-SMD
Xem thêm module quang 10Gb n?u c?n
Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SFP (mini-GBIC) Transceiver Module(SMF, 1310nm, 10km, LC, DOM)
Modul quang Cisco GLC-LH-SMD cung c?p mô-?un có th? c?m y?u t? hình th?c nh? hi?u su?t cao và hi?u qu? chi phí cao cho ?ng d?ng Gigabit Ethernet 1000BASE-LX / LH và Kênh s?i quang 1G. Nó hoàn toàn tuân th? Th?a thu?n ?a ngu?n SFP (MSA) và có th? ???c s? d?ng trên thi?t b? m?ng tuân th? MSA.
S?n ph?m ???c ki?m tra ?? t??ng thích v?i các thi?t b? m?ng c?a Cisco bao g?m B? chuy?n m?ch Ethernet, B? ??nh tuy?n Ethernet, card m?ng (NIC) và b? chuy?n ??i quang. ?ây là m?t thi?t b? lý t??ng t??ng ???ng v?i b? thu phát DOM SFP b??c sóng dài GLC-LH-SMD 1000BASE-LX / LH c?a Cisco nh?ng v?i m?c giá th?p h?n nhi?u, cung c?p gi?i pháp thu phát t??ng thích ?áng tin c?y cho các nhà tích h?p h? th?ng, nhà phân ph?i và ng??i dùng cu?i trong c? s? h? t?ng m?ng và cáp quang .
S?n ph?m ???c ki?m tra ?? t??ng thích v?i các thi?t b? m?ng c?a Cisco bao g?m B? chuy?n m?ch Ethernet, B? ??nh tuy?n Ethernet, card m?ng (NIC) và b? chuy?n ??i quang. ?ây là m?t thi?t b? lý t??ng t??ng ???ng v?i b? thu phát DOM SFP b??c sóng dài GLC-LH-SMD 1000BASE-LX / LH c?a Cisco nh?ng v?i m?c giá th?p h?n nhi?u, cung c?p gi?i pháp thu phát t??ng thích ?áng tin c?y cho các nhà tích h?p h? th?ng, nhà phân ph?i và ng??i dùng cu?i trong c? s? h? t?ng m?ng và cáp quang .
Tính n?ng Cisco GLC-LH-SMD=
• Functionally identical to Cisco GLC-LH-SMD
• Up to 20km on 9/125µm SMF
• Compliant with IEEE 802.3z
• Support Digital diagnostics (DOM)
• Single 3.3V power supply
• Duplex LC connector
• ROHS compliant and Lead-Free
• Up to 20km on 9/125µm SMF
• Compliant with IEEE 802.3z
• Support Digital diagnostics (DOM)
• Single 3.3V power supply
• Duplex LC connector
• ROHS compliant and Lead-Free
| OEM Cisco Part Number | GLC-LH-SMD | OEM Part Number | |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | FP/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -22 dBm | Receiver Overload | > -3 dBm |
| Connector | Duplex LC | DDM | Yes |
| Environment | Operating: 0°C to 70°C | Weight | 0.025 kg |
| Storage: -40°C to 85°C | |||
| Application | 1x Fiber Channel, Switch to Switch Interface | Compliance | IEC/EN 61000-4-2,IEC-60825 |
| Gigabit Ethernet, Switched Backplane Applications | FDA 21CFR 1040.10 and 1040.11 | ||
| Router/Server Interface, Other Optical Links | RoHS |
